Products

Hastelloy C-276 Fasteners

Apr 24, 2025 by EST-Metal 0 Comments

Hastelloy C276 UNS N10276 is a Nickel Chromium Molybdenum Alloy with excellent corrosion resistance, particularly in high temperatures (up to 1900 ° F) and corrosive media.Nickel Based Alloy with excellent corrosion resistance.Its chemical composition and microstructure enable it to maintain good mechanical properties and chemical stability under high temperature, high pressure, and strong corrosive environments. The alloy is widely used in fields such as petroleum, chemical, and marine engineering.

Characteristics of Hastelloy C276 Nuts and Bolts

  • Corrosion resistance: C276 alloy nuts and bolts have excellent corrosion resistance and can resist the erosion of various corrosive media, such as sulfuric acid, hydrochloric acid, hydrofluoric acid, etc.
  • High temperature stability: C276 alloy nuts and bolts can still maintain their mechanical properties and corrosion resistance at high temperatures, making them suitable for high-temperature working environments.
  • High strength: C276 alloy nuts and bolts have high strength and hardness, and can withstand large loads.
  • Good process ability: Hastelloy C276 has excellent ductility and weld ability,easy to form, and is suitable for various manufacturing processes. This characteristic enables it to manufacture complex equipment components while reducing welding issues during the manufacturing process.

Application of Hastelloy C276 Nuts and Bolts

  • Petrochemical industry: C276 alloy nuts and bolts are widely used in equipment connection, pipeline installation and other scenarios in the petrochemical industry. Due to their excellent corrosion resistance, they can effectively extend the service life of equipment.
  • Marine engineering: In marine engineering, C276 alloy nuts and bolts are used to connect equipment such as offshore platforms and subsea pipelines to withstand harsh marine environments and seawater corrosion.
  • Chemical equipment: C276 alloy nuts and bolts are also suitable for connecting components such as reaction vessels and storage tanks in chemical equipment, ensuring stable operation of the equipment in highly corrosive media.

Products

6Al4V Grade 5 Titanium Bolts

Apr 23, 2025 by EST-Metal 0 Comments

GRADES

Grade2,Grade 5 (6AL-4V), or as per customer request

SPECIFICATION

  • Sizes: From M3 to M24 or larger
  • Length: 6mm to 115mm

COLOR OPTIONS

  •  Natural titanium color
  •  Gold, Black, Rainbow (via Physical Vapor Deposition)
  •  Gold, Black, Rainbow, Blue, Green, Pink, Purple (via Anodizing)
  •  Gray, Brown (via Micro-arc Oxidation)

PROCESSING

  • Cold Heading or CNC Machined

TREATMENT

  • Thick hard carburizing surface
  • Grey ceramic hardening coating
  • Black,Green,Blue,Pink,Gold,Purple,etc.

SURFACE FINISH

– Sandblasted then painted/electrophoresis/zinc plated

INSPECTION

– Precision measuring recommended using Digital Vernier Calipers and thread Gauge for thread pitch.

FEATURES

  • Rustproof and corrosion-resistant
  •  Lower life-cycle cost
  •  Longer service life
  •  Lower maintenance and repair cost
  •  Higher strength-to-weight ratio
  •  Superconducting features
  •  Good miscibility with blood
  •  Non-magnetic, Non-toxic
  •  Memory function

APPLICATIONS

  •  Racing cars
  •  Electrodes
  •  Medical equipment
  •  Airplanes
  •  Bicycles
  •  Auto parts
  •  Petroleum pipeline parts
  •  Sports items
  •  Motorcycle parts
  •  Wheel bolts
  •  Electric components

Products

Aluminum 6061 custom manufacturing

Apr 23, 2025 by EST-Metal 0 Comments

6061 aluminum alloy is a high-quality Aluminum alloy product produced through heat treatment and pre stretching processes. Al 6061 Alloy has good weldability and corrosion resistance: Similar to industrial pure aluminum in the atmosphere, it is resistant to freshwater and seawater corrosion. The corrosion rate in inorganic acids depends on the concentration of the acid. For most organic acids, it is corrosion-resistant, with severe corrosion in potassium hydroxide and sodium hydroxide solutions and slight corrosion in ammonium chloride solutions.

6061 aluminum alloy has excellent processing performance, good corrosion resistance, high toughness, no deformation after processing, easy coloring film, and excellent oxidation effect.

Typical Applications of 6061 Aluminum Alloy
1. The application of strip materials is widely used in industries such as decoration, packaging, construction, transportation, electronics, aviation, aerospace, weapons, etc.
2. Aluminum materials for aerospace are used to manufacture aircraft skins, fuselage frames, beams, rotors, propellers, fuel tanks, wall panels, landing gear columns, as well as rocket forging rings, spacecraft wall panels, etc.

3. Aluminum materials for transportation are used as structural materials for automobile bodies, subway vehicles, railway passenger cars, high-speed passenger cars, doors and windows, shelves, automobile engine components, air conditioners, radiators, body panels, wheel hubs, and marine materials.
4. Aluminum materials for packaging are mainly used as metal packaging materials, and are manufactured in the form of sheets and foils for cans, lids, bottles, barrels, and packaging foils. Widely used in packaging of beverages, food, cosmetics, pharmaceuticals, cigarettes, and industrial products.
5. Aluminum materials for printing are mainly used to make PS plates. Aluminum based PS plates are a new type of material used in the printing industry for automatic plate making and printing.
6. Aluminum alloy for architectural decoration is widely used in building frames, doors and windows, suspended ceilings, decorative surfaces, etc. Due to its good corrosion resistance, sufficient strength, excellent processing performance, and welding performance. Such as various building doors and windows, aluminum profile curtain walls, aluminum curtain wall panels, profile panels, grid panels, color coated aluminum panels, etc.


7.Aluminum materials for electronic appliances are mainly used in fields such as current conductors, overhead lines, conductors, electrical components, refrigerators, air conditioners, cables, etc. Specifications: round bar, square bar.
8.Representative applications include aerospace fixtures, electrical fixtures, communication equipment, and are also widely used in automated mechanical parts, precision machining, mold manufacturing, electronics and precision instruments, SMT, PC board soldering racks, etc.

Chemical composition of 6061 aluminum alloy

Cu: 0.15～0.4 Mn: 0.10 Mg: 0.8～1.2 Zn: 0.25

Cr: 0.04～0.35 Ti: 0.15 Si: 0.4～0.8 Fe: ≤0.7 Al: Remaining

Products

Super Duplex 2507 Stainless Steel Bolts

Apr 22, 2025 by EST-Metal 0 Comments

EST Metal has been producing and selling Super Duplex 2507 Stainless Steel Fasteners for a long time, including Super Duplex 2507 Stainless Steel hexagonal bolts,Super Duplex 2507 Stainless Steel double headed bolts, Super Duplex 2507 Stainless Steel hexagonal nuts, Super Duplex 2507 Stainless Steel internal hexagonal screws, Super Duplex 2507 Stainless Steel full threaded screws, Super Duplex 2507 Stainless Steel flat washers, Super Duplex 2507 Stainless Steel articulated screws,Super Duplex 2507 Stainless Steel carriage bolts,Super Duplex 2507 Stainless Steel flange bolts, Super Duplex 2507 Stainless Steel hexagonal nylon lock nuts, and Super Duplex 2507 Stainless Steel non-standard parts.

SUPER DUPLEX 2507 Bolts is a ferritic austenitic duplex Stainless Steel that combines the properties of ferritic steel and austenitic steel. Due to its high chromium and molybdenum content, this steel has good resistance to pitting corrosion, crevice corrosion, and uniform corrosion. Has good resistance to stress corrosion cracking and high mechanical strength. 2507 stainless steel is used in the petroleum and natural gas industry, offshore oil platforms, petrochemical equipment, desalination equipment, and exhaust gas purification equipment. Customization has a low minimum order quantity and short delivery time. The product specifications can reach M64 and the length can reach 1 meter. Welcome to inquire and learn more.

Super Duplex 2507 Bolts is a high-strength and highly corrosion-resistant boltS, which is widely used in various fields due to its excellent mechanical properties and corrosion resistance.

1、 Characteristics of Super Duplex 2507 Bolts

The duplex steel 2507 bolts is a type of duplex stainless steel bolt characterized by excellent mechanical properties and corrosion resistance. Specifically, the dual phase steel 2507 bolt has the following characteristics:

  1. High strength: The dual phase steel 2507 bolt has high tensile strength and yield strength, can withstand large loads, and has a long service life.
  2. High corrosion resistance: Dual phase steel 2507 bolts have good corrosion resistance in various corrosive media, especially in media containing chloride ions.
  3. Good welding performance: Dual phase steel 2507 bolts have good welding performance and can perform various welding operations such as butt joint, corner joint, lap joint, etc.
  4. Easy to process and manufacture: Dual phase steel 2507 bolts have good plasticity and machinability during the processing and manufacturing process, and can meet the requirements of various complex shapes and specifications of bolts.

2、 Application of Super Duplex 2507 Bolts

Due to its excellent mechanical properties and corrosion resistance, duplex steel 2507 bolts are widely used in various fields. Specifically, the application of duplex steel 2507 bolts includes the following aspects:

  1. Petrochemical field: Super Duplex 2507 Bolts are widely used in the petrochemical field for connecting and fixing equipment such as pipelines, storage tanks, reactors, etc. They can withstand various high temperatures, high pressures, and corrosive media erosion.
  2. Shipbuilding field: Super Duplex 2507 Bolts are widely used in the shipbuilding field for connecting and fixing ship structures, ship equipment, and other parts, and can withstand various marine environmental influences and erosion.
  3. Nuclear energy field: Super Duplex 2507 Bolts are widely used in the connection and fixation of nuclear reactors, nuclear power plants and other equipment in the nuclear energy field, and can withstand various radiation and corrosive media erosion.
  4. In the field of food industry: Super Duplex 2507 Bolts are widely used in the connection and fixation of food processing equipment, storage tanks and other parts in the food industry, which can ensure the hygiene and safety of food.

Products

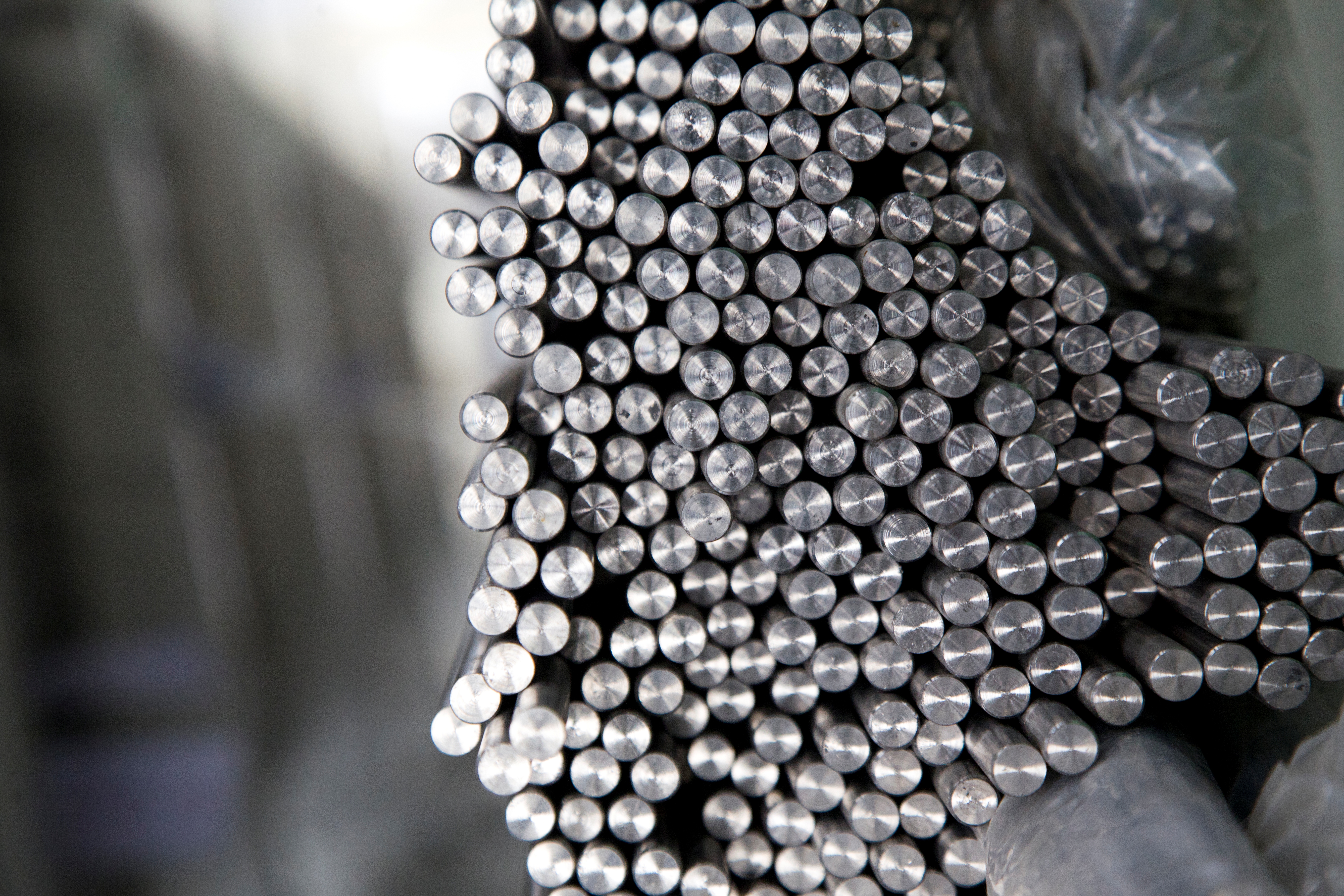

Titanium Bar

May 22, 2024 by shun li 0 Comments

Welcome to EST Metal, your premier destination for high-quality Titanium bars crafted to meet the most demanding industry standards. With a commitment to excellence and precision engineering, we offer a comprehensive range of titanium bars meticulously designed to cater to diverse applications across aerospace, medical, automotive,and industrial.

At EST Metal, we understand the critical role that Titanium plays in pushing the boundaries of modern engineering. Our collection showcases a variety of Titanium grades, including Grade 2, Grade 5, Grade 9, Grade 23, and more, each engineered to deliver exceptional strength, durability, and corrosion resistance.

Whether you’re searching for Grade 2 Titanium bar for Industrial or Grade 5 Titanium bars for Automotive, our extensive selection ensures that you’ll find the perfect solution for your project requirements.

Gr2, Gr5, GR9, Gr23, TI6AL7NB

Our Titanium Bars lineup encompasses an array of high-performance alloys, including Grade 5 (Ti-6Al-4V), Grade 9 (Ti-3Al-2.5V), Grade 23 (Ti-6Al-4V ELI), and Ti-6Al-7Nb, each engineered to excel in specific applications while maintaining superior quality and reliability.

Specifications

Available in diameters ranging from 8mm to 300mm and lengths up to 6000mm

ensuring versatility and suitability for various applications.

Standard

Compliant with ASTM B348, ASTM F136, ASTM F67, and AMS4928 standards, guaranteeing top-notch quality and reliability.

Surface

All Titanium Bars come with a polished finish, Bright and enhancing their aesthetic appeal while maintaining their inherent durability and corrosion resistance.

Products

Refractory Metal

May 6, 2024 by EST-Metal 0 Comments

EST Metal has long been recognized as a leading supplier specializing in titanium products. However, our strategic location and extensive industry connections have enabled us to broaden our offerings to include a range of high-quality refractory metals. Leveraging our expertise and network, we now proudly offer a diverse selection of refractory metal products, including Molybdenum sheets, Niobium bars and sheets, Tantalum, Tungsten Wire Twisted, and Tungsten Boat.

Explore our expanded product line and discover the same commitment to quality and reliability that has made EST Metal a trusted name in the industry for titanium products.

Products

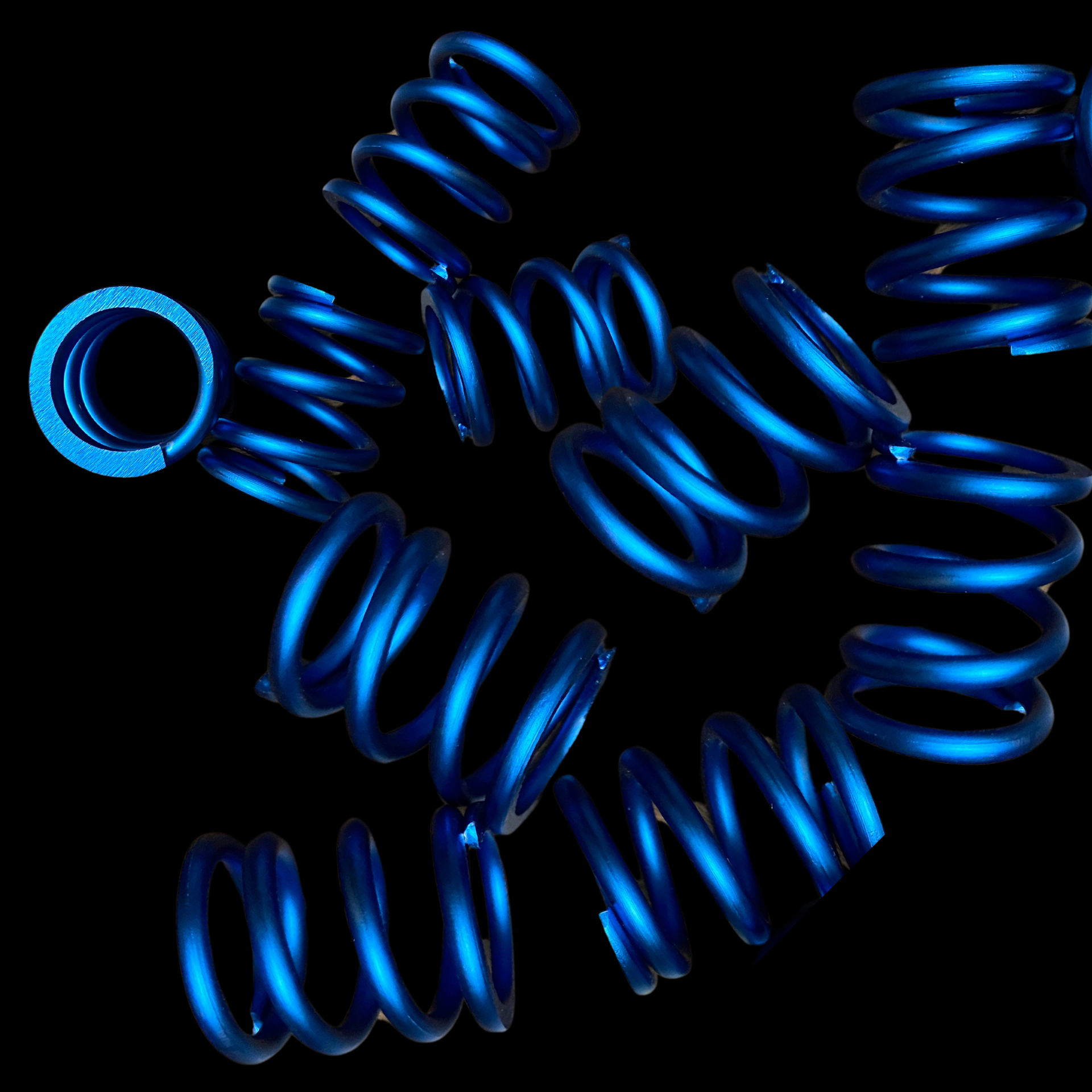

Titanium Custom Process

May 6, 2024 by EST-Metal 1 Comments

Welcome to EST Metal, your premier destination for custom processing solutions tailored to your specific needs. Whether you require cutting, machining,
or technical support for your EST metal project, we’re here to assist you every step of the way.

Types and characteristics are as follows:

  • Cutting Services:
    • Sawing
    • Shearing
    • Water Jet Cutting
    • Wire-Electrode Cutting
  • Machining Services:
    • Precision machining of EST metal parts to your specifications or drawings
  • Customization Options:
    • Tailored cutting and machining services to meet your specific needs
  • Technical Support:
    • Expert guidance and information provided by our technical team
    • Answers to common questions about EST metals, including cost, availability, fabrication, and usage
  • Personalized Solutions:
    • Customized recommendations and solutions based on your unique requirements
  • Dedicated Customer Care:
    • Commitment to excellent service and customer satisfaction

Process Introduction:

At EST Metal, we understand the importance of a smooth and efficient process from initial concept to final product. Here’s how our process typically unfolds:

  1. Consultation and Design Phase:

    • Send us your files and designs, and our team will review them to understand your project requirements.
    • We’ll engage in discussions about the material options and feasibility of your design, ensuring that it aligns with your specifications and goals.

  2. Agreements and Approvals:

    • Once the design details are finalized, we’ll establish agreements regarding pricing, timeline, and other project-specific terms.
    • Upon reaching mutual agreements, we’ll proceed with obtaining necessary approvals and documentation to move forward with the manufacturing process.

  3. Prototype and Sample Production:

    • Depending on the complexity of the project, we may produce prototypes or samples for your evaluation and approval.
    • We’ll work closely with you to ensure that the prototypes meet your expectations in terms of quality, functionality, and aesthetic appeal.

  4. Third-Party Qualifications (if applicable):

    • In certain cases where third-party qualifications or certifications are required, we’ll collaborate with accredited agencies to ensure compliance with industry standards.

Contact EST Metal Today:

Ready to bring your EST metal project to life with our comprehensive range of services and expert support? Book an online meeting or contact us by mail today to discuss your project requirements. Your satisfaction is our priority, and we’re committed to providing you with the highest level of service throughout every stage of your project.

These examples highlight our expertise and dedication to excellence in EST metal custom processing across diverse industries and applications. Whether you require precision machining, fabrication, or finishing services, EST Metal is your trusted partner for delivering tailored solutions that exceed expectations.



Contact us today to discuss your project requirements and discover how we can help you succeed with EST metal custom processing.

Products

Titanium Foil

May 6, 2024 by EST-Metal 0 Comments

Titanium foil, with over 99.6% purity, is available in various widths and thicknesses, commonly .005″ (.13mm). Grade 2 titanium foil is widely used due to its versatility, combining formability, strength, and corrosion resistance, making it ideal for lightweight stoves, aerospace components, and medical implants.

  • Material Description: CP Titanium foil with >99.6% purity, .005″ thick (.13mm), available in 5 different widths. Grade 2 is widely used in lightweight stoves due to its excellent formability, moderate strength, light weight, and superior corrosion resistance. It’s utilized in stove bodies, stove pipes, lightweight wind screens, pot lids, and other backpacking tools.
  • Available Standards: ASTM B265, ASTM B265, AMS 4910, etc.
  • Available Grades: CP Grades 1, 2, 3, 4, 6AL-4V, 6AL-4V Eli, etc.
  • Available Sizes:
    • (0.01-0.02) x (30-100) x (≥500)mm
    • (0.03-0.09) x (50-300) x (≥500)mm
    • (0.00-0.03) x (50-300) x (≥500)mm
    • (0.40-0.9.0) x (50-500) x (≥1000)mm
    • (1.0-2.0) x (50-500) x (≥2000)mm
  • Available Shape: Straight / Coiled Foil
  • Chemical Requirements:
    Element GR.1 GR.2 GR.5 GR.7 GR.9 GR.12
    N ≤0.03 ≤0.03 ≤0.05 ≤0.03 ≤0.02 ≤0.03
    C ≤0.08 ≤0.08 ≤0.08 ≤0.08 ≤0.08 ≤0.08
    H ≤0.015 ≤0.015 ≤0.015 ≤0.015 ≤0.015 ≤0.015
    Fe ≤0.2 ≤0.3 ≤0.4 ≤0.3 ≤0.25 ≤0.3
    O ≤0.18 ≤0.25 ≤0.20 ≤0.25 ≤0.15 ≤0.25
    Al – – 5.5-6.75 – 2.5-3.3 –
    V – – 3.5-4.5 – 2.0-3.0 –
    Mo – – – – – 0.2-0.4
    Ni – – – – – 0.6-0.9
    Pd – – – 0.12-0.25 – –
    • Features:
      • Low density
      • High specific strength
      • Excellent corrosive resistance
      • Rustless
      • Good thermal stability
      • Good thermal conductivity
      • Biological features
      • Plasticity, etc.
    • Applications: Widely used in the petroleum, industry, smelting, shipbuilding, thin film, medical, aerospace field, acoustic diaphragms, etc.

Notable features include low density, high strength, corrosion resistance, and good thermal properties. Applications range from aerospace to medical fields, and it’s used in industries such as petroleum, shipbuilding, and thin film production. In essence, titanium foil offers a balance of strength, lightness, and corrosion resistance for various industrial needs.

Products

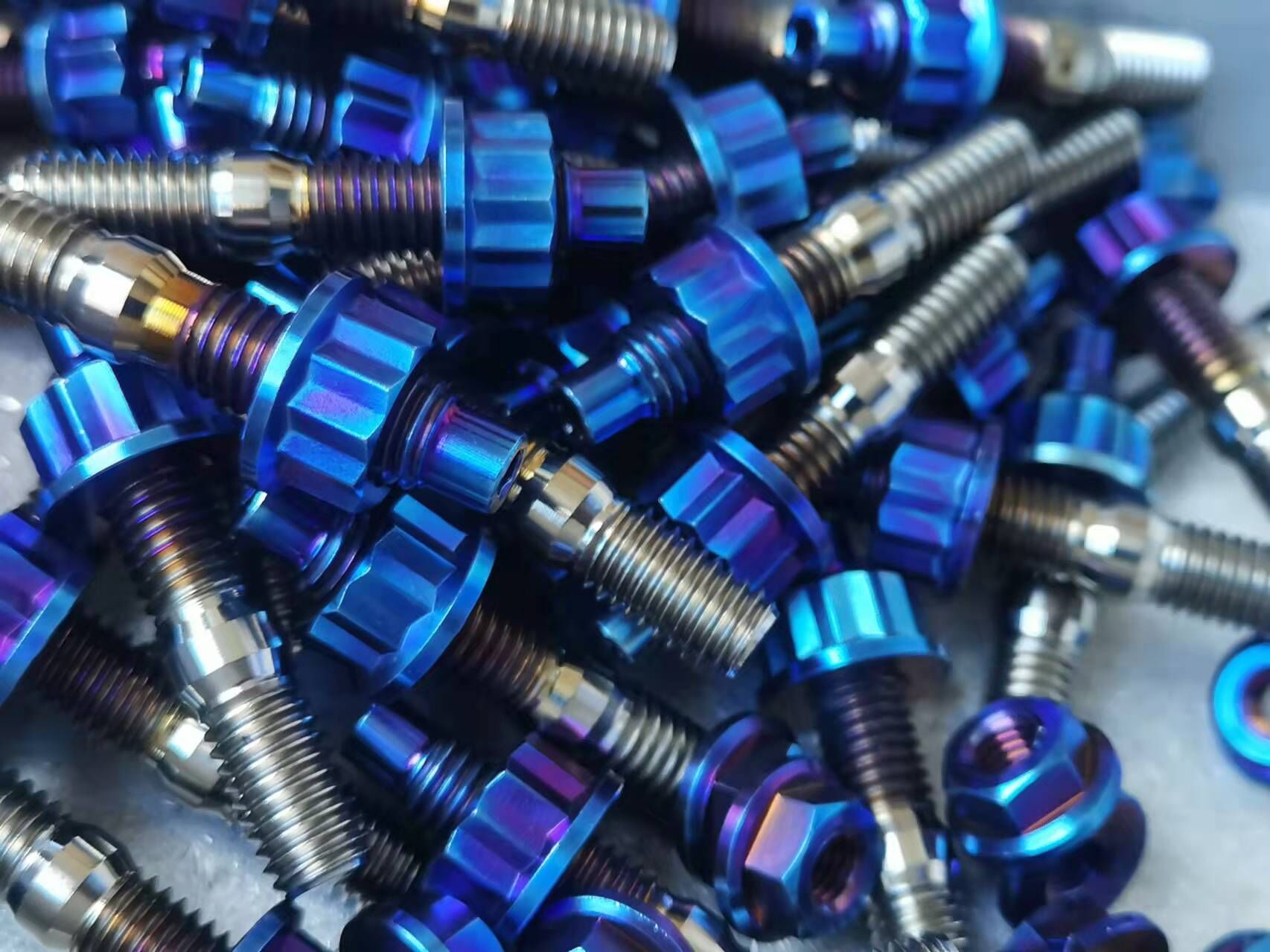

Titanium Fasteners

May 6, 2024 by EST-Metal 0 Comments

AVAILABLE STANDARD

– According to customer drawings or specifications

AVAILABLE GRADES

– Grade 5 (6AL-4V), or as per customer request

SPECIFICATIONS

– Sizes: From M3 to M24 or larger

– Length: 6mm to 115mm

COLOR OPTIONS

  •  Natural titanium color
  •  Gold, Black, Rainbow (via Physical Vapor Deposition)
  •  Gold, Black, Rainbow, Blue, Green, Pink, Purple (via Anodizing)
  •  Gray, Brown (via Micro-arc Oxidation)

PROCESSING

– Cold Heading or CNC Machined

TREATMENT

  • Thick/hard carburizing surface
  • Grey ceramic hardening coating

SURFACE FINISH

– Sandblasted then painted/electrophoresis/zinc plated

INSPECTION

– Precision measuring recommended using Digital Vernier Calipers and thread Gauge for thread pitch.

FEATURES

  • Rustproof and corrosion-resistant
  •  Lower life-cycle cost
  •  Longer service life
  •  Lower maintenance and repair cost
  •  Higher strength-to-weight ratio
  •  Superconducting features
  •  Good miscibility with blood
  •  Non-magnetic, Non-toxic
  •  Memory function

APPLICATIONS

  •  Racing cars
  •  Electrodes
  •  Medical equipment
  •  Airplanes
  •  Bicycles
  •  Auto parts
  •  Petroleum pipeline parts
  •  Sports items
  •  Motorcycle parts
  •  Wheel bolts
  •  Electric components
Products

Titanium Forgings

May 6, 2024 by EST-Metal 0 Comments

Titanium Blocks: Precision and Versatility

Titanium blocks are available in a diverse range of thicknesses and widths, offering unparalleled versatility in various applications. Unlike other metals that are easily cast and formed, titanium, owing to its reactivity, requires meticulous handling within an inert environment. Exposure to the atmosphere can render titanium brittle and compromise its integrity.

Advancements in Fabrication:

In recent years, significant strides have been made in tooling to streamline fabrication processes. Innovations such as enhanced welding techniques, improved torch cups for superior gas coverage, and specialized tools for purging spool assemblies have revolutionized the fabrication of titanium. Machining capabilities continue to evolve, with manufacturers constantly pushing the boundaries to develop robust machinery tailored for titanium applications.

Standard Specifications and Grades:

Titanium blocks adhere to stringent standards to meet diverse industry requirements. Common specifications include ASTM B348, ASTM B381 for general applications, and AMS 4928 for aerospace applications. Titanium is available in various grades, ranging from Grade 1 to Grade 12, each offering unique properties suited for specific applications. Notable grades include Grade 5 (Ti-6AL-4V), Grade 7 (Ti-0.2pd), and Grade 9 (Ti-3AL-2.5V), among others.

Available Sizes

Size Range Dimensions (Diameter x Height)
Small Dia 150-300mm x 20-600mm
Medium Dia 300mm-500mm x 20-600mm
Large Dia 500-1100mm x 35-600mm



Titanium boasts exceptional properties that make it an ideal choice for a myriad of applications. Its corrosion resistance, lightweight nature, and high hardness set it apart from conventional materials. Beyond industrial uses, titanium finds its way into architectural marvels, decorative elements for ceilings and walls, and various ornamental applications, driving the need for advanced surface treatments.


Surface Treatment Techniques

  • Annealing and Pickling: Pickling with buddha acid hydrogen yields a lustrous silver finish, albeit at a low cost. However, indiscriminate disposal of pickling by-products poses environmental challenges.
  • Vacuum Annealing: Vacuum annealing ensures the titanium remains smooth and pristine post-cold rolling, imparting a subtle silver hue with a touch of grey gloss.
  • Blasting: High-pressure blasting with glass beads, metal balls, or sand achieves a matte finish, ideal for decorative purposes.
  • Embossing: Mechanical or erosive techniques create intricate designs on the titanium surface, adding a distinctive aesthetic appeal.
  • Etching: Electric etching or chemical etching methods are employed to engrave logos or text onto titanium surfaces, offering branding opportunities.
  • Mirror Finishing: Achieving a mirror finish on titanium poses challenges due to its inherent affinity to other materials, requiring specialized techniques for pristine results.
