Titanium Bar
Products

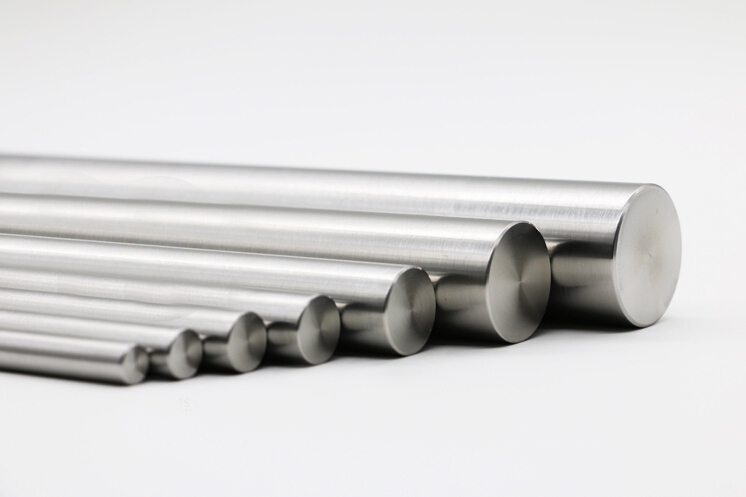

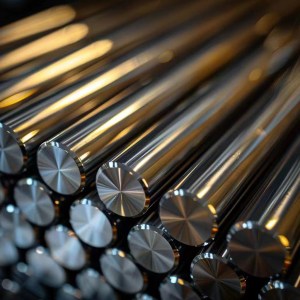

Welcome to EST Metal, your premier destination for high-quality Titanium bars crafted to meet the most demanding industry standards. With a commitment to excellence and precision engineering, we offer a comprehensive range of titanium bars meticulously designed to cater to diverse applications across aerospace, medical, automotive,and industrial.
At EST Metal, we understand the critical role that Titanium plays in pushing the boundaries of modern engineering. Our collection showcases a variety of Titanium grades, including Grade 2, Grade 5, Grade 9, Grade 23, and more, each engineered to deliver exceptional strength, durability, and corrosion resistance.
Whether you're searching for Grade 2 Titanium bar for Industrial or Grade 5 Titanium bars for Automotive, our extensive selection ensures that you'll find the perfect solution for your project requirements.
Gr2, Gr5, GR9, Gr23, TI6AL7NB
Our Titanium Bars lineup encompasses an array of high-performance alloys, including Grade 5 (Ti-6Al-4V), Grade 9 (Ti-3Al-2.5V), Grade 23 (Ti-6Al-4V ELI), and Ti-6Al-7Nb, each engineered to excel in specific applications while maintaining superior quality and reliability.
Specifications
Available in diameters ranging from 8mm to 300mm and lengths up to 6000mm
ensuring versatility and suitability for various applications.
Standard
Compliant with ASTM B348, ASTM F136, ASTM F67, and AMS4928 standards, guaranteeing top-notch quality and reliability.
Surface
All Titanium Bars come with a polished finish, Bright and enhancing their aesthetic appeal while maintaining their inherent durability and corrosion resistance.
STANDARD:Our Titanium Round Bars adhere to rigorous industry standards, including ASTM B348, ASTM F136, ASTM F67, and AMS4928, ensuring top-notch quality and reliability. SPECIFICATIONS:Diameter ranging from 8mm to 300mm and lengths up to 6000mm, offering flexibility and suitability for various applications. SURFACE: All Titanium Round Rods come polished, ensuring a sleek finish and enhancing their aesthetic appeal while maintaining their inherent durability. CHEMICAL COMPOSITION:
| Maximum (%) | Maximum (%) |
| -0.97 | 0.03 |
| -0.92 | 0.08 |
| -0.985 | 0.015 |
| -0.8 | 0.2 |
| -0.82 | 0.18 |
| 0.1 (each), 0.3 (total) | 0.1 (each), 0.4 (total) |
PHYSICAL PROPERTIES:
| Grade | Tensile Strength (Rm/MPa >=) | Provision of Non-Proportional Extension Strength (Rp0.2/MPa) | Break Elongation (aA/% >=) | Reduction of Cross-Sectional Area (Z/%) |
| Gr1 | 240 | 140 | 24 | 30 |
| Gr2 | 400 | 275 | 20 | 30 |
| Gr3 | 500 | 380 | 18 | 30 |
| Gr4 | 580 | 485 | 15 | 25 |
| Gr5 | 895 | 825 | 10 | 25 |
| Gr6 | 785 | 680 | 10 | 25 |
| Gr7 | 370 | 250 | 20 | 25 |
| Gr12 | 485 | 345 | 18 | 25 |
| Gr23 | 830 | 760 | 10 | 15 |
MACHINABILITY: Contrary to common misconceptions, machining Titanium and its alloys is manageable with the right approach. Comparable to 316 stainless steel, our Titanium Round Bars exhibit superior machinability. Employing recommended practices, including high coolant flow to counteract low thermal conductivity, along with slow speeds and relatively high feed rates, ensures optimal machining results. Trust in our expertise and precision engineering to meet your machining needs efficiently and effectively.
GRADE 5 (Ti-6Al-4V): Grade 5 Titanium, also known as Ti-6Al-4V, is renowned for its exceptional strength-to-weight ratio, making it ideal for aerospace, automotive, and medical applications. Offering impressive corrosion resistance and heat treatability, Grade 5 Titanium Bars are heat treatable, lightweight, and exhibit outstanding durability.
Gr5 Titanium Bas Specifications:
Diameter: 8mm – 300mm Length: ≤ 6000mm Tensile Requirements:
| Grade | Tensile Strength (ksi) | Tensile Strength (MPa) | Yield Strength (ksi) | Yield Strength (MPa) | Elongation (%) |
| Gr1 | 35 | 240 | 20 | 138 | 24 |
| Gr2 | 50 | 345 | 40 | 275 | 20 |
| Gr3 | 65 | 450 | 55 | 380 | 18 |
| Gr4 | 80 | 550 | 70 | 483 | 15 |
| Gr5 | 130 | 895 | 120 | 828 | 10 |
| Gr7 | 50 | 345 | 40 | 275 | 20 |
| Gr9 | 90 | 620 | 70 | 438 | 15 |
| Gr12 | 70 | 438 | 50 | 345 | 18 |
Available Material Chemical Composition:
| Element | GR.1 | GR.2 | GR.5 | GR.7 | GR.9 | GR.12 |
| N | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.03 | ≤0.02 | ≤0.03 |
| C | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.08 |
| H | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 |
| Fe | ≤0.2 | ≤0.3 | ≤0.4 | ≤0.3 | ≤0.25 | ≤0.3 |
| O | ≤0.18 | ≤0.25 | ≤0.20 | ≤0.25 | ≤0.15 | ≤0.25 |
| Al | – | – | 5.5-6.75 | – | 2.5-3.3 | – |
| V | – | – | 3.5-4.5 | – | 2.0-3.0 | – |
| Mo | – | – | – | – | – | 0.2-0.4 |
| Ni | – | – | – | 0.12-0.25 | – | 0.6-0.9 |
| Pd | – | – | – | Residual | Residual | Residual |
| Ti | Residual | Residual | Residual | Residual | Residual | Residual |
Our commitment to quality is unwavering, with strict quality control measures in place to ensure that each Titanium Bar meets the highest standards of excellence. Third-party inspections further validate the quality and reliability of our products, providing peace of mind to our valued customers. For inquiries, assistance, or custom orders, our dedicated customer support team is always available to provide personalized service and guidance. Your satisfaction is our priority, and we are committed to ensuring a seamless experience from inquiry to delivery.
Grade 9 Titanium, or Ti-3Al-2.5V, strikes a balance between strength and formability, making it a preferred choice for airframe components, exhaust systems, and marine applications. With its excellent weldability and corrosion resistance, Grade 9 Titanium Bars offer versatility and reliability in demanding environments.
Gr9 Titanium Bas Specifications:
Diameter: Customizable, accessible to a range from 8mm to 300mm Length: Customizable, accessible to a maximum of 6000mm Product Shapes: Round bar, square bar, hex bar, rectangular bar Mechanical Properties (ASTM B348):
| Property | Minimum Value |
| Tensile Strength | 620 MPa |
| Yield Strength | 483 MPa |
| Elongation | 15% |
| Reduction of Area | 25% |
Chemical Component (WT%):
| Element | Al (%) | V (%) | N (%) | C (%) | H (%) | Fe (%) | O (%) | Residuals (%) |
| Range | 2.5-3.5 | 2.0-3.0 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | ≤ 0.1 |
Maximum total residuals: 0.4% Our commitment to quality is unwavering, with strict quality control measures in place to ensure that each Titanium Bar meets the highest standards of excellence. Third-party inspections further validate the quality and reliability of our products, providing peace of mind to our valued customers. For inquiries, assistance, or custom orders, our dedicated customer support team is always available to provide personalized service and guidance. Your satisfaction is our priority, and we are committed to ensuring a seamless experience from inquiry to delivery.
Grade 23 Titanium, also referred to as Ti-6Al-4V ELI (Extra Low Interstitial), is specifically engineered for medical and aerospace applications where biocompatibility and enhanced fracture resistance are critical. Offering superior toughness and resilience, Grade 23 Titanium Bars excel in surgical implants, prosthetics, and aerospace structures, even in extreme cold temperatures.
Gr23 Titanium Bas Specifications:
Diameter: Customizable, accessible to a range from 8mm to 300mm Length: Customizable, accessible to a maximum of 6000mm Product Shapes: Round bar, square bar, hex bar, rectangular bar Chemical Component (WT%):
| Element | Al | V | N | C | H | Fe | O | Residuals |
| Range | 5.5-6.5 | 3.5-4.5 | 0.03 | 0.08 | 0.0125 | 0.25 | 0.13 | ≤0.1 |
Maximum total residuals: 0.4% Physical Properties:
| Property | Minimum Value |
| Tensile Strength | 828 MPa |
| Yield Strength | 759 MPa |
| Elongation | 10% |
| Reduction of Area | 15% |
Our commitment to quality is unwavering, with strict quality control measures in place to ensure that each Titanium Bar meets the highest standards of excellence. Third-party inspections further validate the quality and reliability of our products, providing peace of mind to our valued customers. For inquiries, assistance, or custom orders, our dedicated customer support team is always available to provide personalized service and guidance. Your satisfaction is our priority, and we are committed to ensuring a seamless experience from inquiry to delivery.
Ti-6Al-7Nb Titanium Alloy is a specialized material tailored for medical implant applications, particularly in orthopedic and dental surgeries. With its unique composition of 6% aluminum, 7% niobium, and the balance titanium, Ti-6Al-7Nb Titanium Bars exhibit exceptional biocompatibility, corrosion resistance, and fatigue strength, ensuring optimal performance and longevity in medical devices and implants.
TI6AL7NB Titanium Bas Specifications:
Shape: Round Regular Size: Diameter: 4mm – 90mm Length: 2500mm – 3200mm
Chemical Composition:
| Material | Ti | Al | Nb | Fe (max) | C (max) | N (max) | H (max) | O (max) |
| Ti-6Al-7Nb | Bal | 5.5-6.5 | 6.5-7.5 | 0.25 | 0.08 | 0.08 | 0.009 | 0.2 |
Mechanical Properties:
| Material | Condition | Tensile Strength, MPa (Min) | Yield Strength, MPa (Min) | Elongation, % (Min) | Reduction Of Area, % (Min) |
| Ti-6Al-7Nb | M | 900 | 800 | 10 | 25 |
Our commitment to quality is unwavering, with strict quality control measures in place to ensure that each Titanium Bar meets the highest standards of excellence. Third-party inspections further validate the quality and reliability of our products, providing peace of mind to our valued customers. For inquiries, assistance, or custom orders, our dedicated customer support team is always available to provide personalized service and guidance. Your satisfaction is our priority, and we are committed to ensuring a seamless experience from inquiry to delivery.
